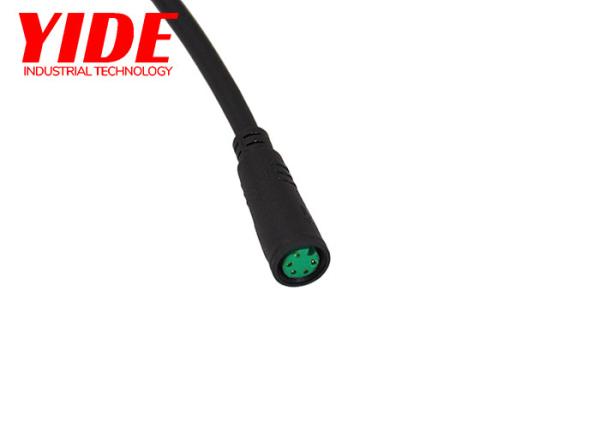

Waterproof Ebike Motor Connector 5Pin Female 2A 48V Brake Extension Cabler
1. product description
1). Direct plug-in docking assembly, simple to use and convenient
installation;
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more
suitable for the demand;
4). Innovation and development in 2008, the first generation of
electric bicycle universal signal lines.
5). Mainly used for led strip, electric bicycle accessories and
other signal lines.
2. application
Signal&power contal ans transmission of E-motorcycle
3. advantages
Durable / temperature resistance /freeze-proofing
High current / low resistance
4. specification
| Brand: | YIDE |
| P/N: | YIDE-308 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name | M8 Series |
| Product Spec | 5PIN Famale |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 48V |
| Rated current(25°C) | 2A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤200 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.14mm2-0.2mm2 |
| Application Area | |
| Signal contal and transmission of electric bicycles, balance bikes ans scooter | |
5. more picture
6. company profile
YIDE Company Profile:
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
|
|
