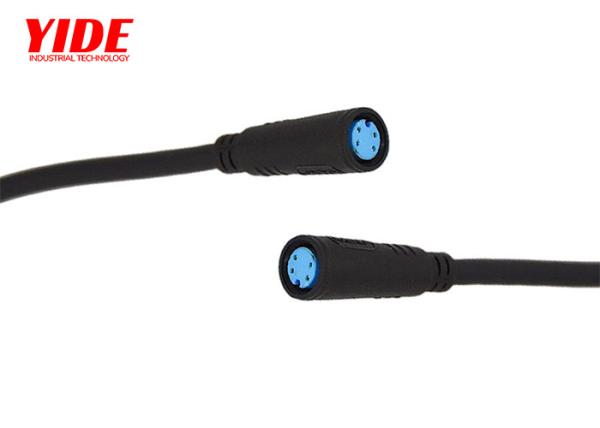

M8 Series E Bike Connector 3 PIN Female High Current IP67
1. product description
2. application
Signal&power contal ans transmission of E-motorcycle
waterproof connector widely used for vehicles application.
Advance Push locking structure,easy for filed assembly
Charging and discharging port available
Cooperated applicaiton:electric bike ,electric motor,eletric vehicle, new energy car,batter charger etc.
3. advantages
Small volume;
High durability, corrosion resistance, oxidation resistance ;
Strong waterproof performance;
Extremely easy mating ;
Economical;
Meet IP67 waterproof requirements;
Temperature Range:-20℃ ~ +85℃;
2. specification
| Brand: | YIDE |
| P/N: | YIDE-306 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name | M8 Series |
| Product Spec | 3PIN Famale |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 48V |
| Rated current(25°C) | 2A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤200 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.14mm2-0.2mm2 |
| Application Area | |
| Signal contal and transmission of electric bicycles, balance bikes ans sooter | |
5. more picture
6. YIDE Company Profile:
Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.
Our products are suitable for new energy electric vehicles,
electric bicycles, electric motorcycles, scooters, balance vehicles
and so on
It is also suitable for military equipment, medical aerospace
plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.
|
|
