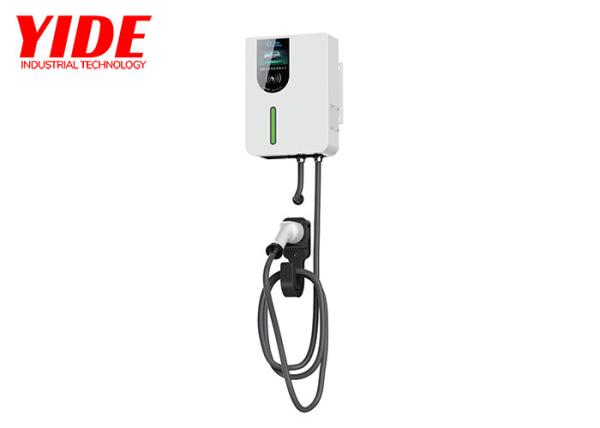

Smart Remote Control EV Charging Pile AC Level 2 32A Wallbox EV Charger
Product description
* Material: The front panel is tempered glass, which has the advantage of Anti-
scratch and high-quality visual effects. The back cover is high
quality plate metal with Special Integral molding, it is safe for
indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization
available;
* highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications
1. Installation of charging piles for private users
2. Construction of charging stations in underground parking garages
3. Outdoor charging station
4. Charging pile project of leisure square
5. Construction of large-scale public station charging station
cooperating with State Grid
Specification
| lnformation of 3.5/7KW AC Charging System | |
| product model | YIDE-AC-3.5KW/7KW |
| input voltage | 220V±15% |
| Rated Frequency | 45-60 |
| output voltage | 220±15% |
| rated current | 16A/32A |
| output maximum power | 3.5KW/7KW |
| Num of charging interfaces | 1 |
| Charging method | swipe card / scan code |
| Cl | Standard R 45 Interface / 4G/LoRa |
| display screen | 4.3inch/no screen |
| communicating protocol | offline management tool / YKC |
| dielectric strength | ≥2000V |
| leakage current | 30 |
| levels of protection | IP54 |
| work environment℃ | -20~50 |
| Working humidity ℃ | -40~70 |
| Interface type | GB20234.2-2015/Connection mode C |
| Measurement method | lntegrated /independent metering |
| Reliability (MTBF) | 50000h |
| defencive function | overvoltage short Circuit , overload , leakage , surge protection |
| way to install | hanging |
| Case material | Injection molding |
| ptional items | Charging gun 5m |
| Size(mm) | L260 * W107 * H360 |
company profile
Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.
Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.
Our products are suitable for new energy electric vehicles,
electric bicycles, electric motorcycles, scooters, balance vehicles
and so on
It is also suitable for military equipment, medical aerospace
plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.
We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.
Our mission is to live for safer and more efficient connectivity.
Fill the world with love and sunshine.
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
|
|
