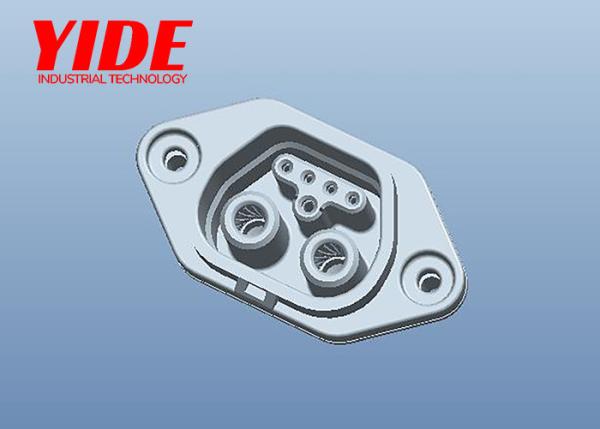

2+1+4 Pin Motorbike Electric Vehicle Lithium Battery Charging Port Socket Connector
1. product description
This is kind of Motorbike Electric vehicle lithium battery charging port socket connector can customize,it can Improved reliability,Waterproof connectors are designed to prevent moisture and dust from entering the electrical connections.
2. specification
| Brand: | YIDE |
| P/N: | YIDE-526 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name | 70A 2+1+4PIN charge connector |
| Product Spec | 2 +1+ 4Pin Famale |
| Connector locking system | Interlock |
| Degree of protection | IP65 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 96V |
| Rated current(25°C) | 70A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤5000 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.2m2 -- 10.0m2 |
| Application Area | |
Signal & power contal and transmission of E-motorcycle | |
3. application
E-motorcycle,battery cable,lithium battery connector ETC.
Signal & power contal and transmission of E-motorcycle
4. advantages
Durable / temperature resistance /freeze-proofing
High current / low resistance
5. more picture
6. company profile
Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.
Our products are suitable for new energy electric vehicles,
electric bicycles, electric motorcycles, scooters, balance vehicles
and so on
It is also suitable for military equipment, medical aerospace
plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
7. FAQ
Why choose us?
1.Manufacturing experience: more then 10 years
2.Connectors passed UL,ROHS,REACH, and CE
3.Inspection:100% tested before delivery
4.For the term of trade,we accept EXW,FOB,CIF,CPT ect
5.We have good cooperation with the famous company
|
|
