    Waterproof 2+1+4Pin 70A Lithium Battery Plug Power Connector

    Ask Lasest Price
    Brand Name : YIDE
    Model Number : YIDE -525
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : Negotiation
    Price : Negotiable
    • Product Details
    • Company Profile

    Waterproof 2+1+4Pin 70A Lithium Battery Plug Power Connector


    Waterproof 2+1+4Pin 70A Lithium Battery Plug Power Connector For Electric Motorcycle


    1. product description

    This is kind of high current Lithium Battery plug power connector For Electric motorcycle,This reduces the risk of corrosion and short-circuits. It can OEM & ODM. It is 70A 96V 2+1+4Pin Charge connector.


    IP65 connector.
    Cable joint material: PVC, nylon PP, rubber.
    You can connect male and female.
    We Can provide you with customized solutions.
    We Can provide colors and materials, and terminal processing.
    Professional R & D team can help customize the project.

    2. specification

    Brand:YIDE
    P/N:

    YIDE-525

    MOQ:500PCS/PER
    Place of Origin:Kunshan City,China
    Delivery Time:1 week
    Start Port:Shanghai
    General features:
    Product Name

    70A 2+1+4PIN charge connector

    Product Spec

    2 +1+ 4Pin Male

    Connector locking systemInterlock
    Degree of protectionIP65
    Ambient temperature(operation)-25°C~+85°C
    Customs tariff number8536901900
    Environmental complianceRoHs, Reach
    Electrical parameters:
    Rated voltage96V
    Rated current(25°C)70A
    Withstand voltage500V
    Contact resistance≤10mΩ
    Insulation resistance≥20MΩ
    Mechanical performance:
    Mechanical operation≤5000 mating cycles
    Insertion force≤20N
    Pull out force≥3N
    Wiring range

    0.2m2 -- 10.0m2

    Application Area

    Signal & power contal and transmission of E-motorcycle


    3. application

    E-motorcycle,battery cable,lithium battery connector ETC.

    Signal & power contal and transmission of E-motorcycle

    Products are widely used in household appliances, automobiles, new energy electric vehicles, motorcycles, aviation,communications,etc


    4. advantages

    Durable / temperature resistance /freeze-proofing

    High current / low resistance


    5. more picture

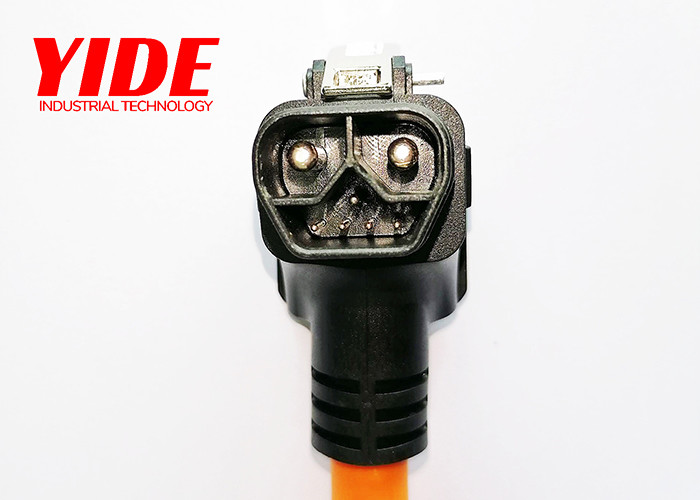

    Waterproof 2+1+4Pin 70A Lithium Battery Plug Power Connector

    6. company profile


    We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.


    Our mission is to live for safer and more efficient connectivity.

    Fill the world with love and sunshine.


    Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.


    7. FAQ

    Why choose us?

    1.Manufacturing experience: more then 10 years
    2.Connectors passed UL,ROHS,REACH, and CE
    3.Inspection:100% tested before delivery
    4.For the term of trade,we accept EXW,FOB,CIF,CPT ect
    5.We have good cooperation with the famous company
